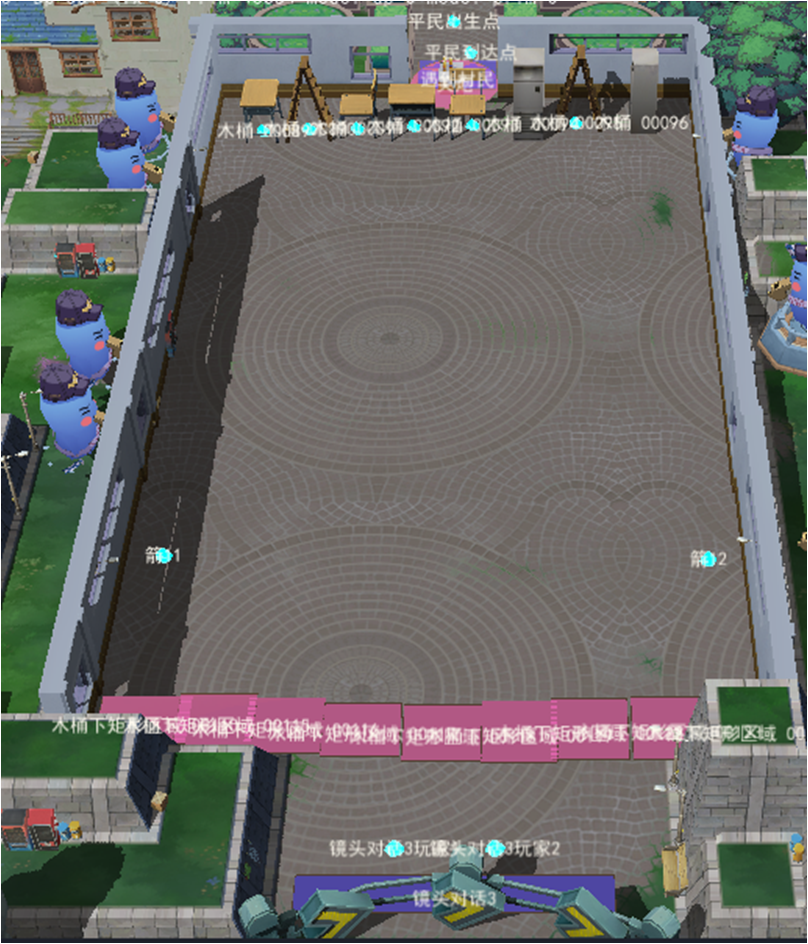

完成效果

制作过程，主要用来阐述其中功能的实现，场景摆放用户可自行设计

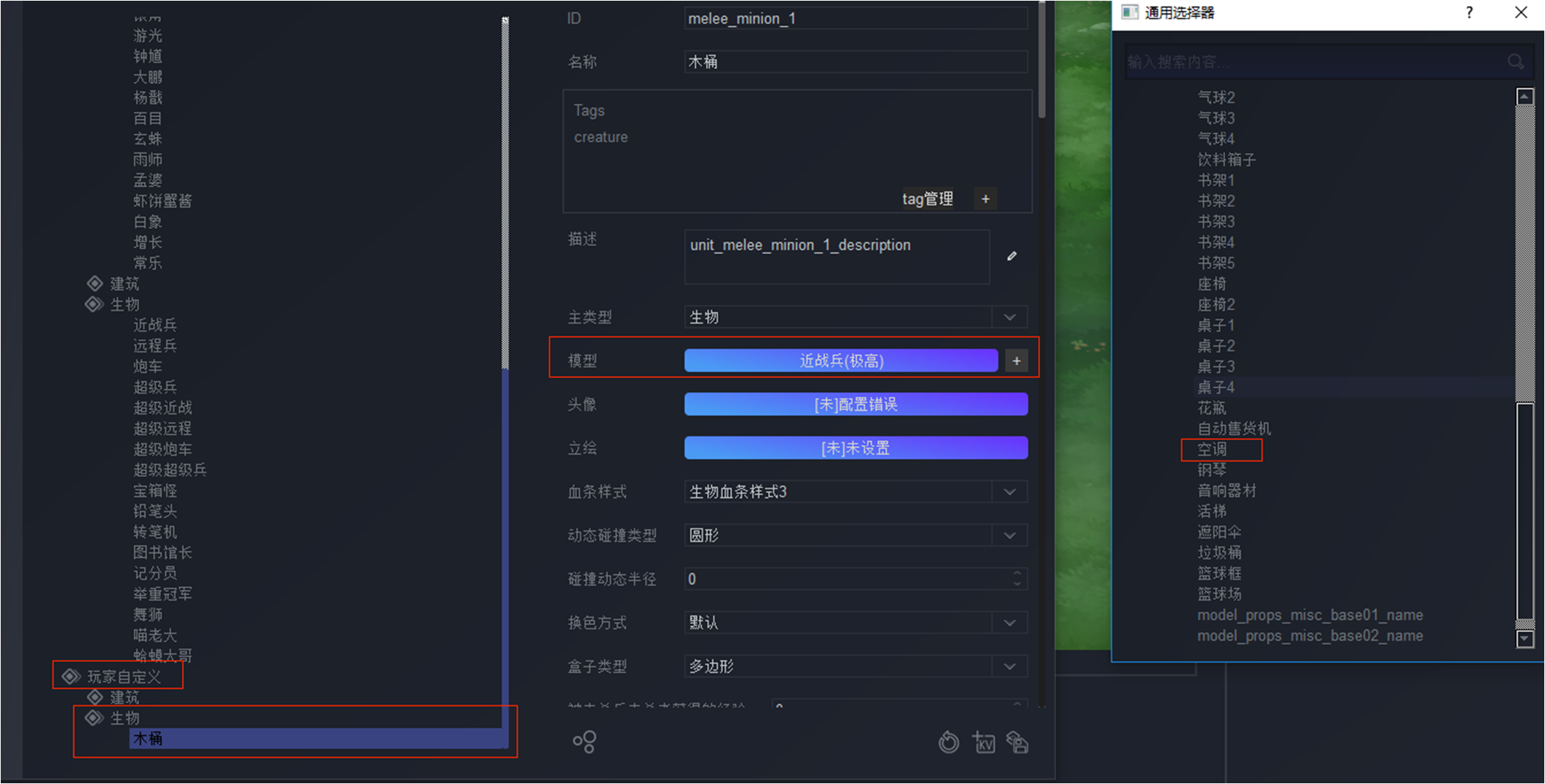

　　首先按照之前建立预设单位那样，新建1个需要移动单位的预设，设置空调为我们这次移动单位的模型，把血条样式设置为无，并且把名称修改为空调（移动）

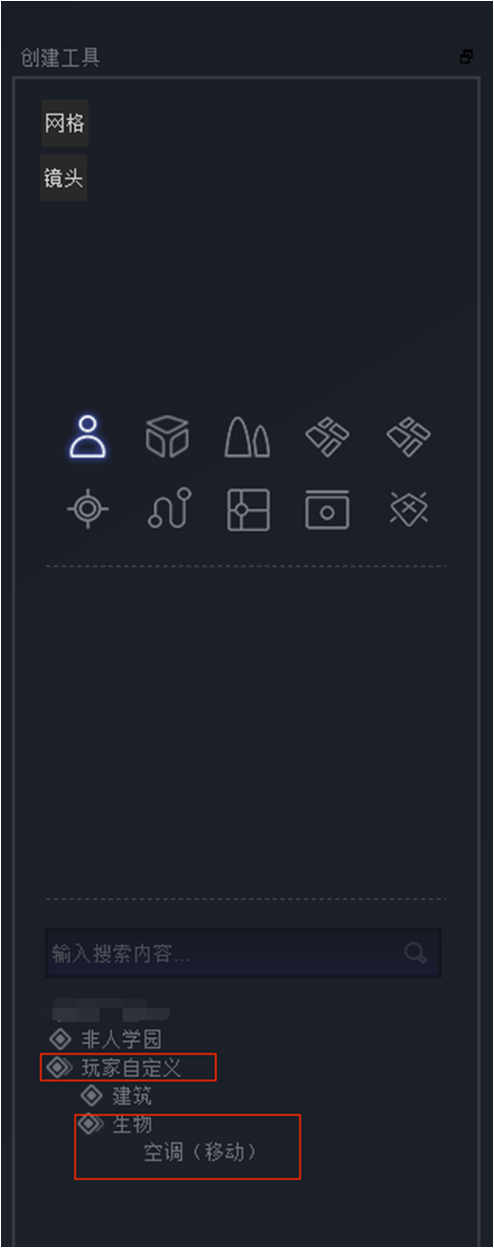

　　在工具栏，单位下的自定义文件中找到刚刚新建的预设，并且放置在场景中

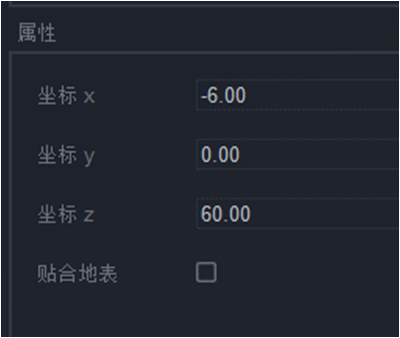

　　在工具栏找到点工具，在场景中左键点击新建，并在属性栏中把其坐标调整的一样。

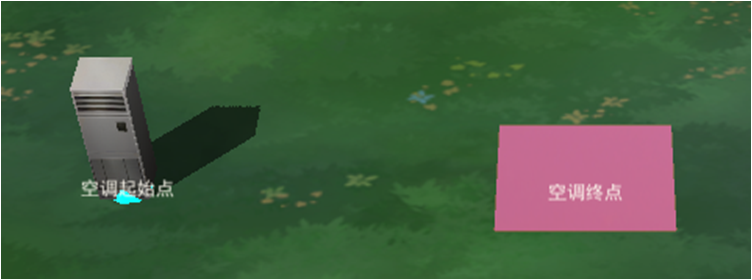

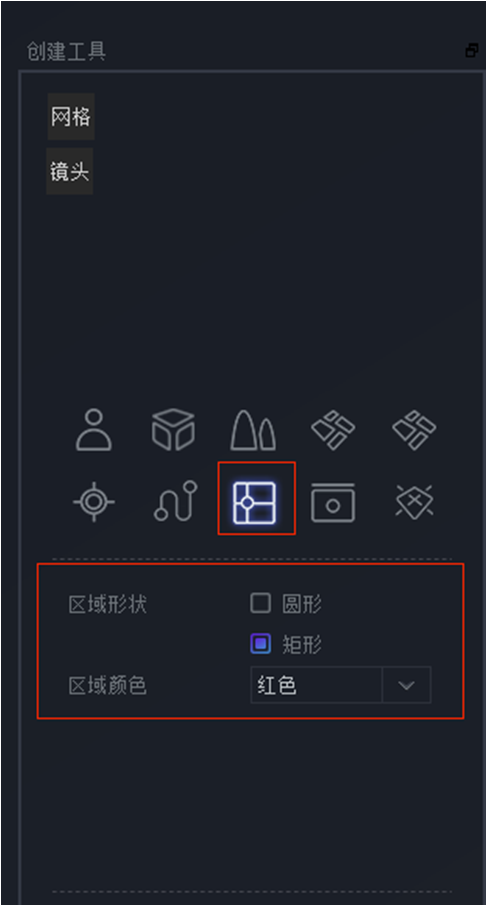

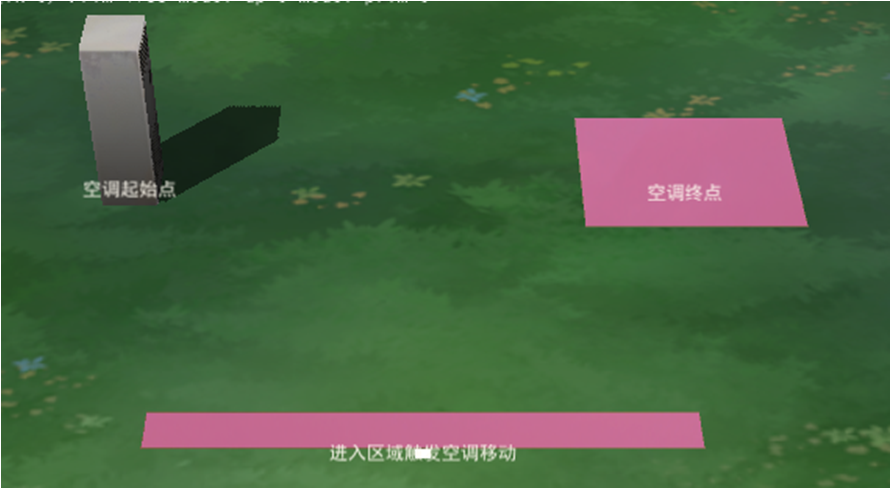

　　在工具栏中找到区域工具，并且选择矩形。在场景中拖拽出一个矩形区域，并改名为空调终点。用户可以使用移动工具自行调整空调的终点

　　然后用同样的方式再新建一个矩形区域，并改名为进入区域触发空调移动。

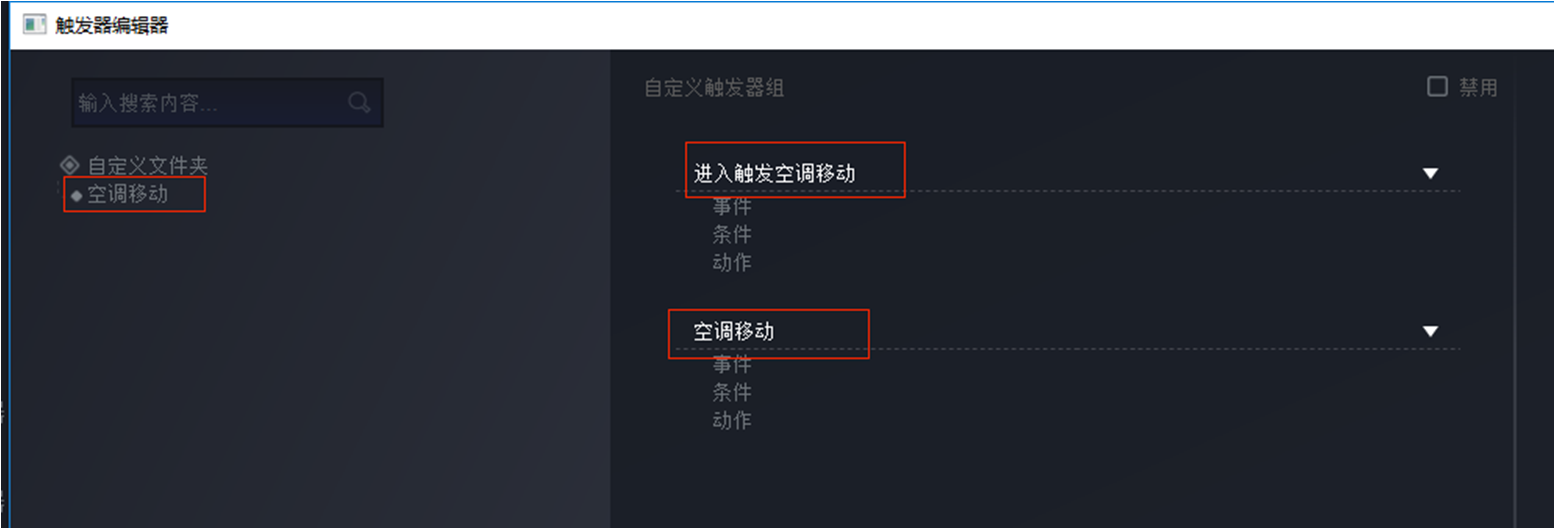

　　新建触发器组，并再触发器组中新建2个触发器，并且改名为图中所示

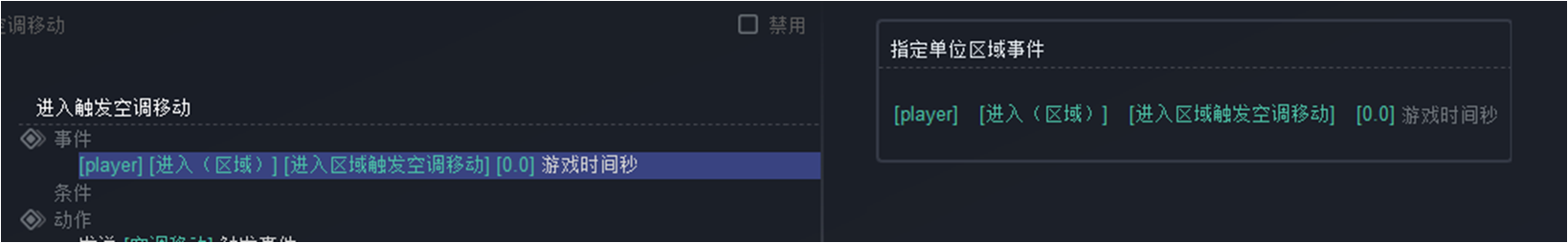

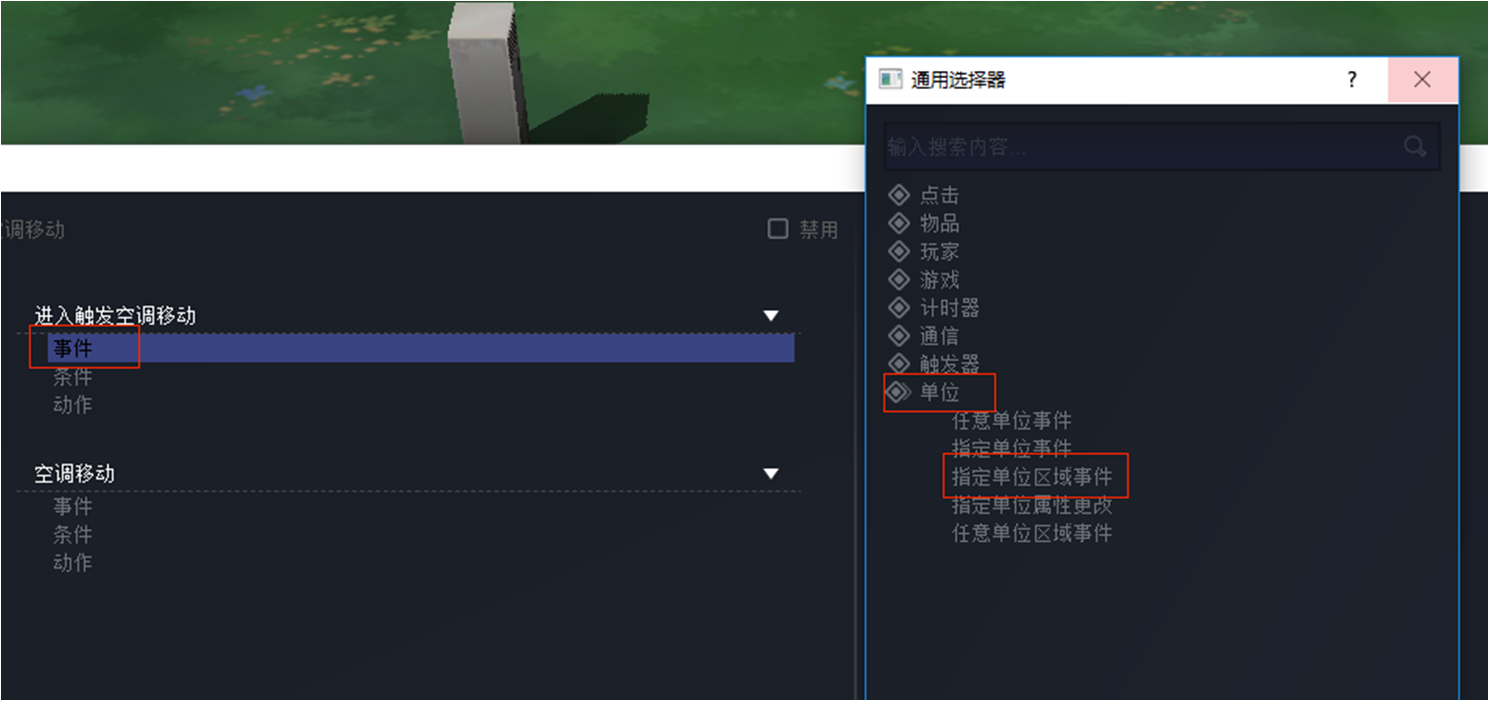

　　在事件中找到指定单位区域事件

　　参数如图所示，其中的player为英雄的选择与创建教程中所使用

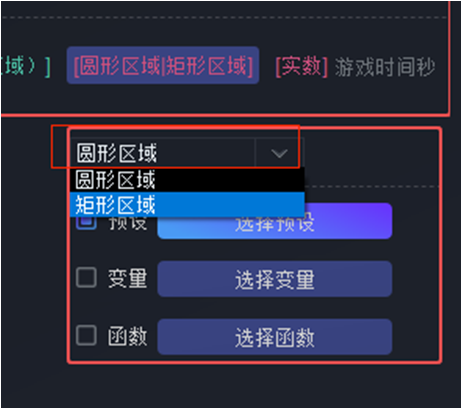

　　需要注意的是需要把圆形区域切换成矩形区域才能看到我们的预设

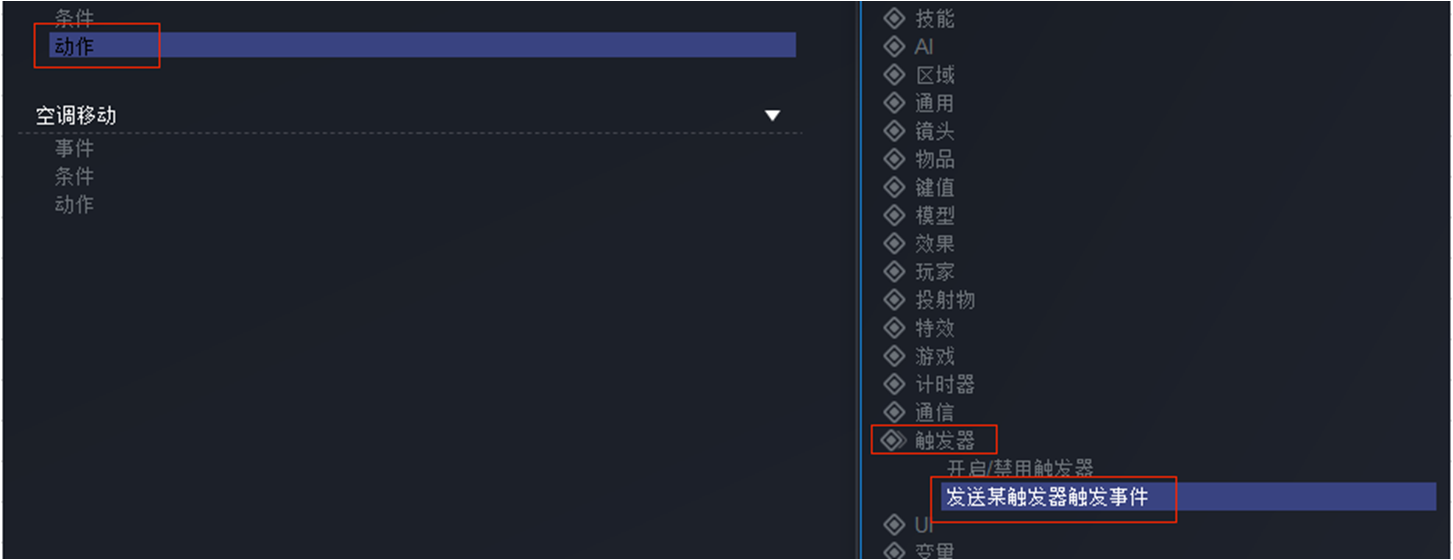

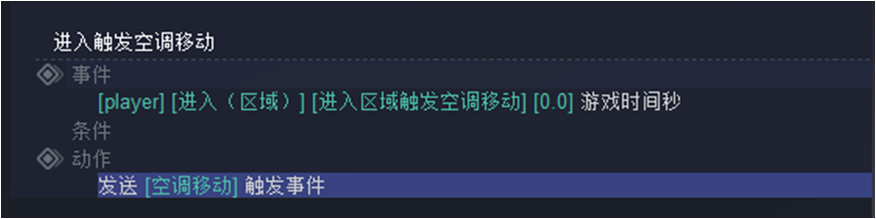

　　在动作中新建发送某触发器触发事件，并且设置为图中所示

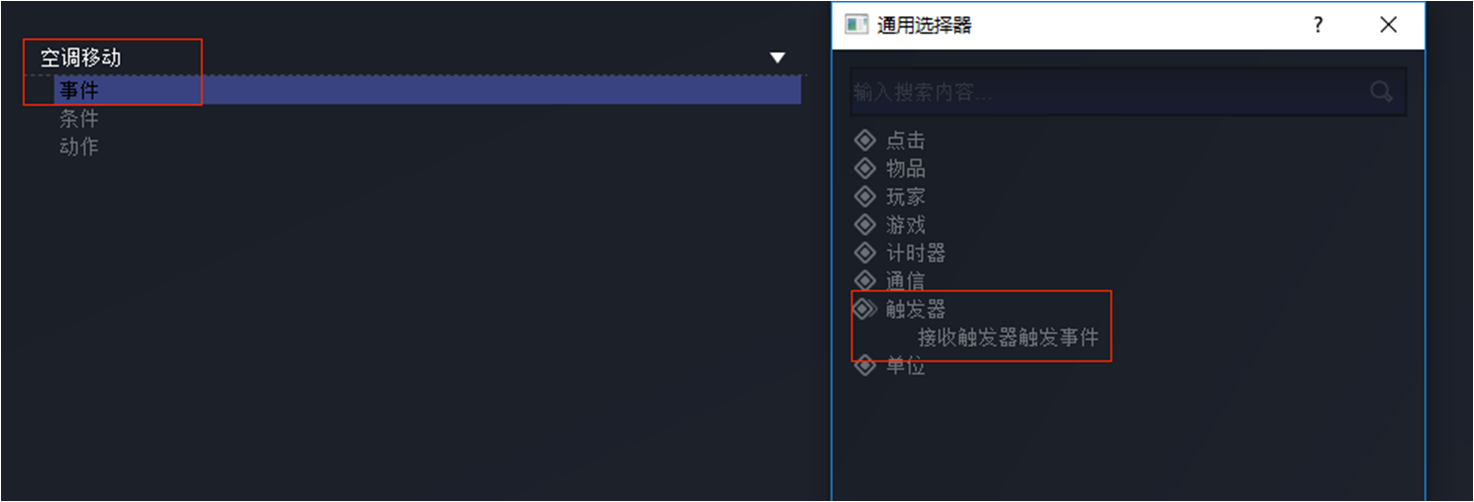

　　在空调移动的事件中，找到接受触发器触发事件

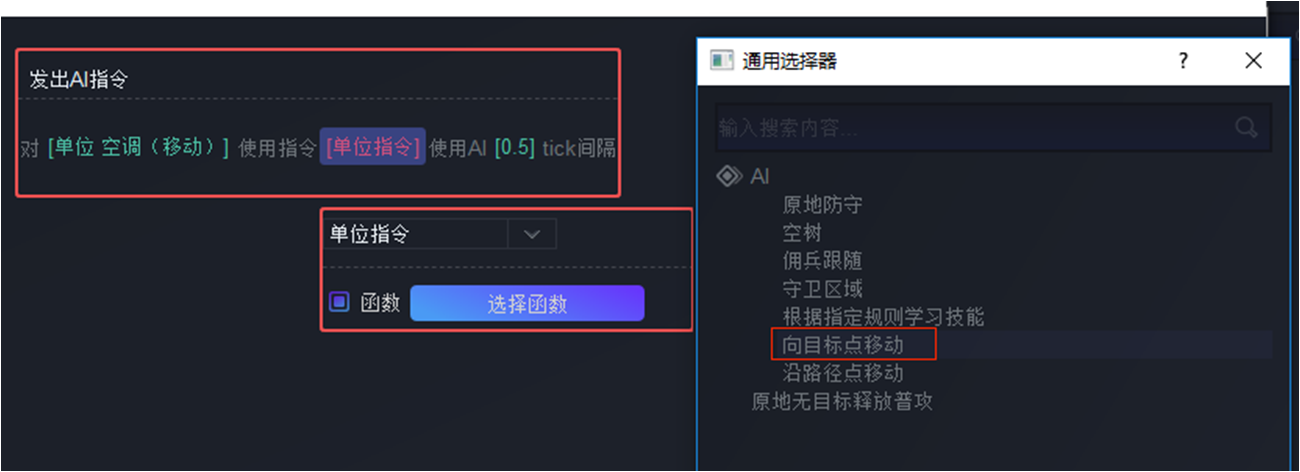

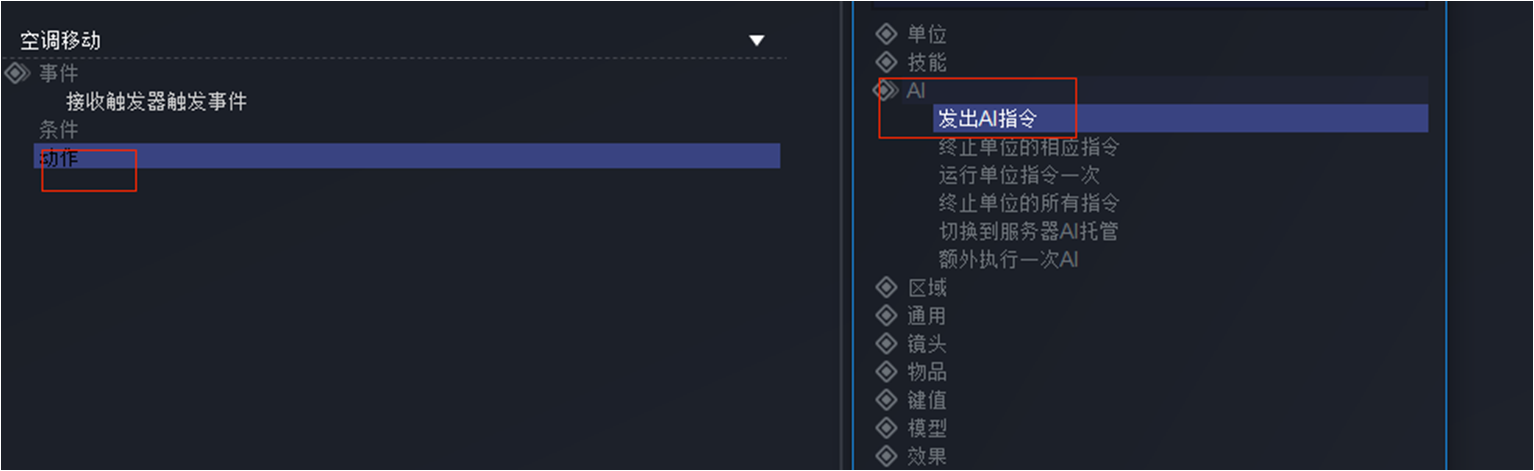

　　在动作中找到发出AI指令

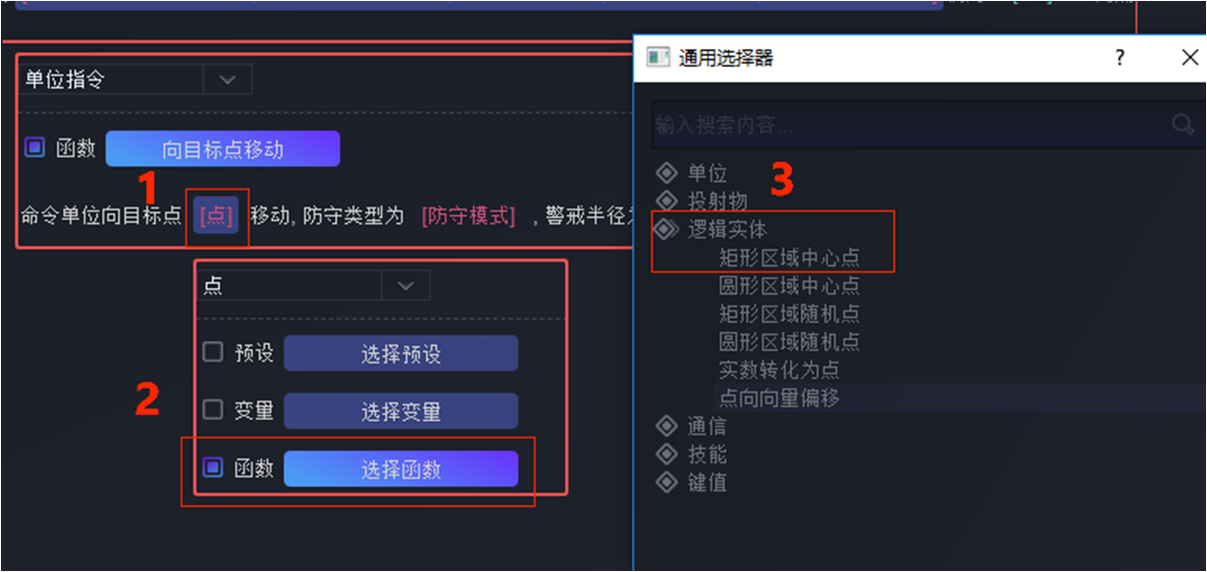

　　在单位指令参数中找到向目标点移动

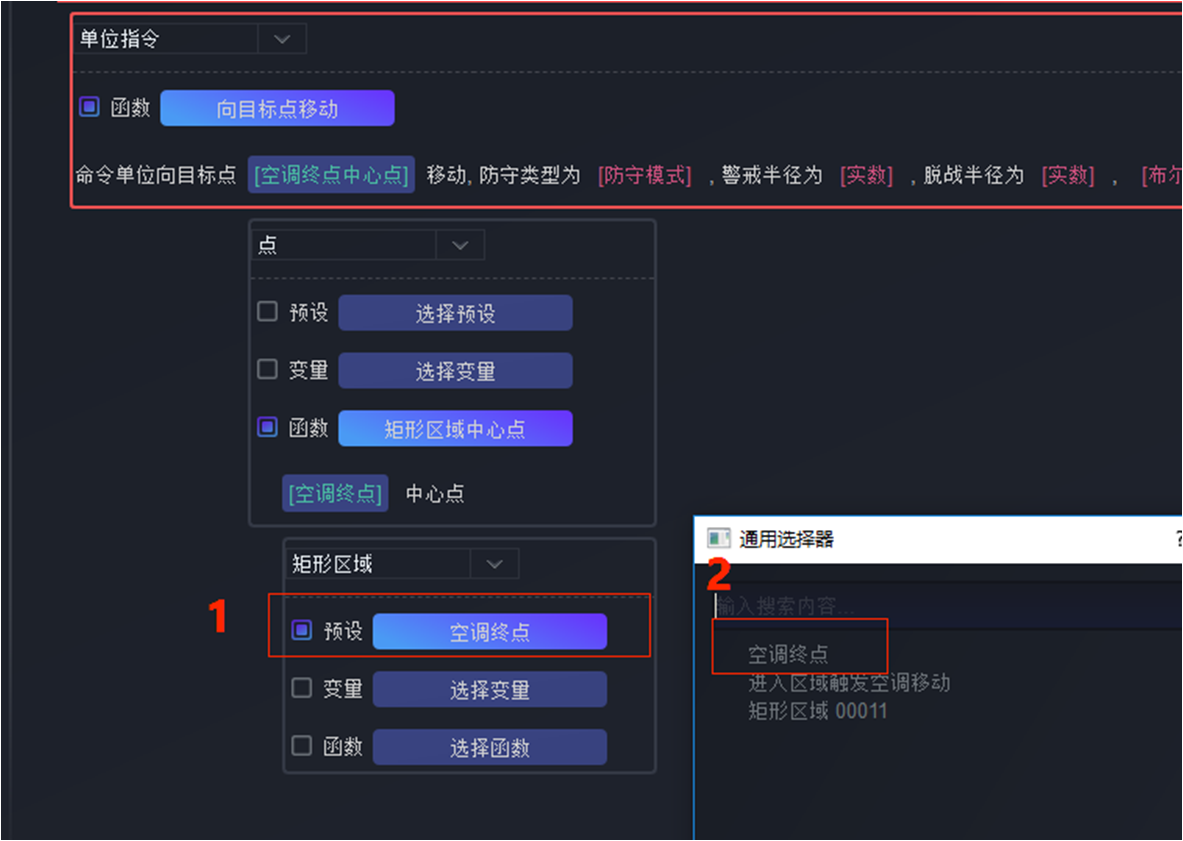

　　在点中选择函数，找到矩形区域中心点，之后在预设中找到我们之前设置的空调终点。这样单位就会朝我们的空调终点的中心点移动了，参数如下

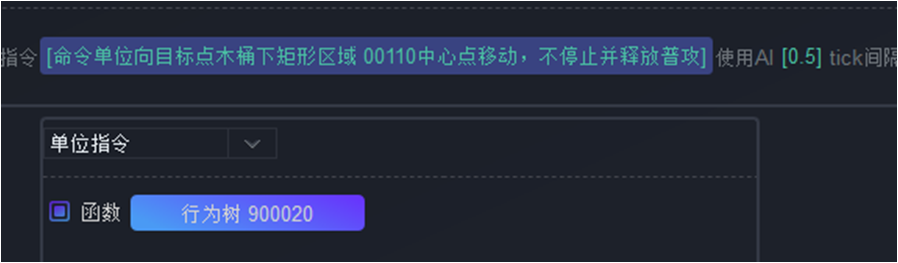

　　但是这样只能确保空调朝中心点移动，并不能每秒都击退，这时就要使用AI编辑器，来进行每间隔一段时间的普攻释放

　　

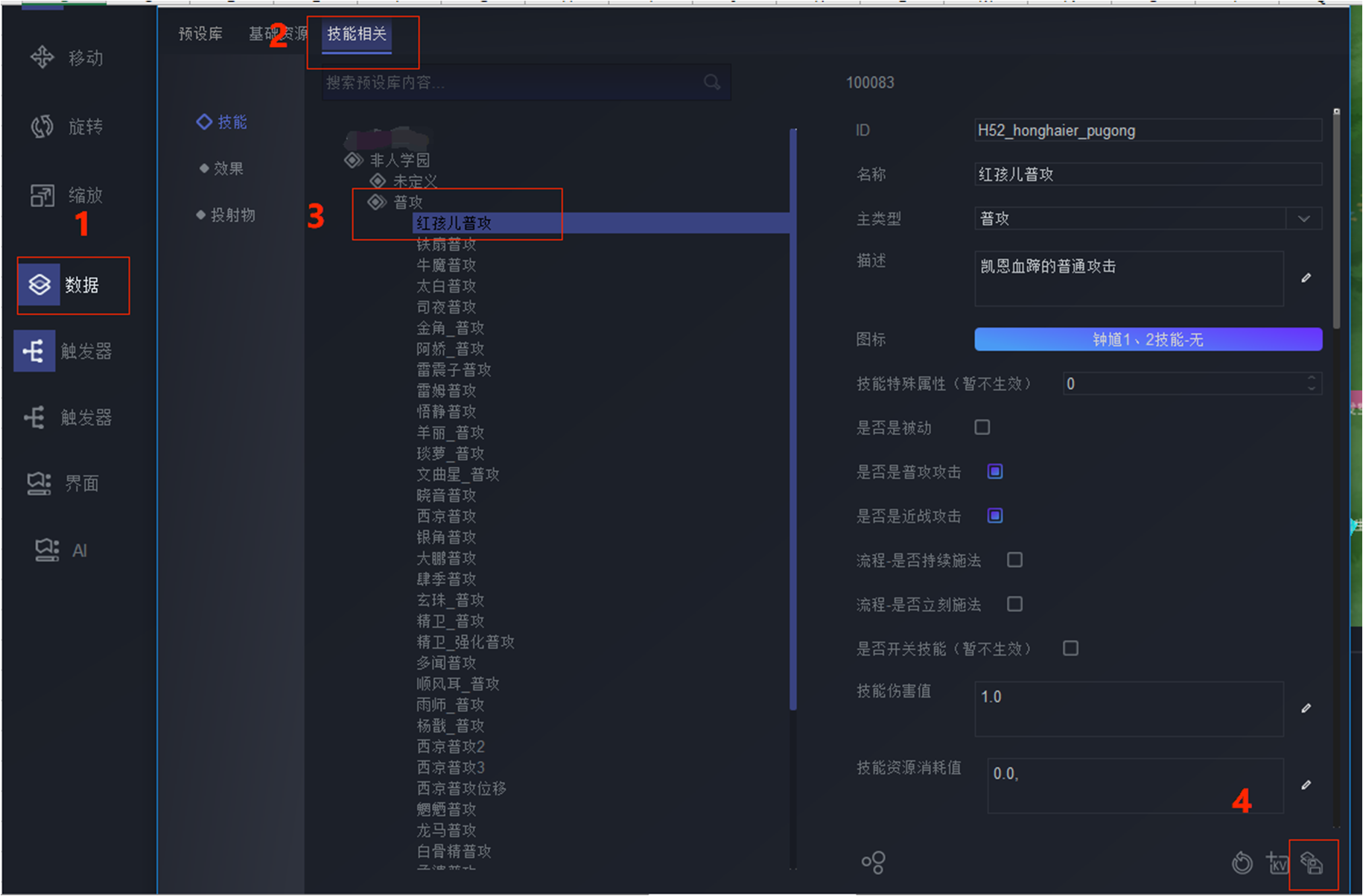

　　之后我们来新建一个击退效果的普攻，点击数据 - 技能相关 - 点选任意一个技能 - 右下角存为新预设

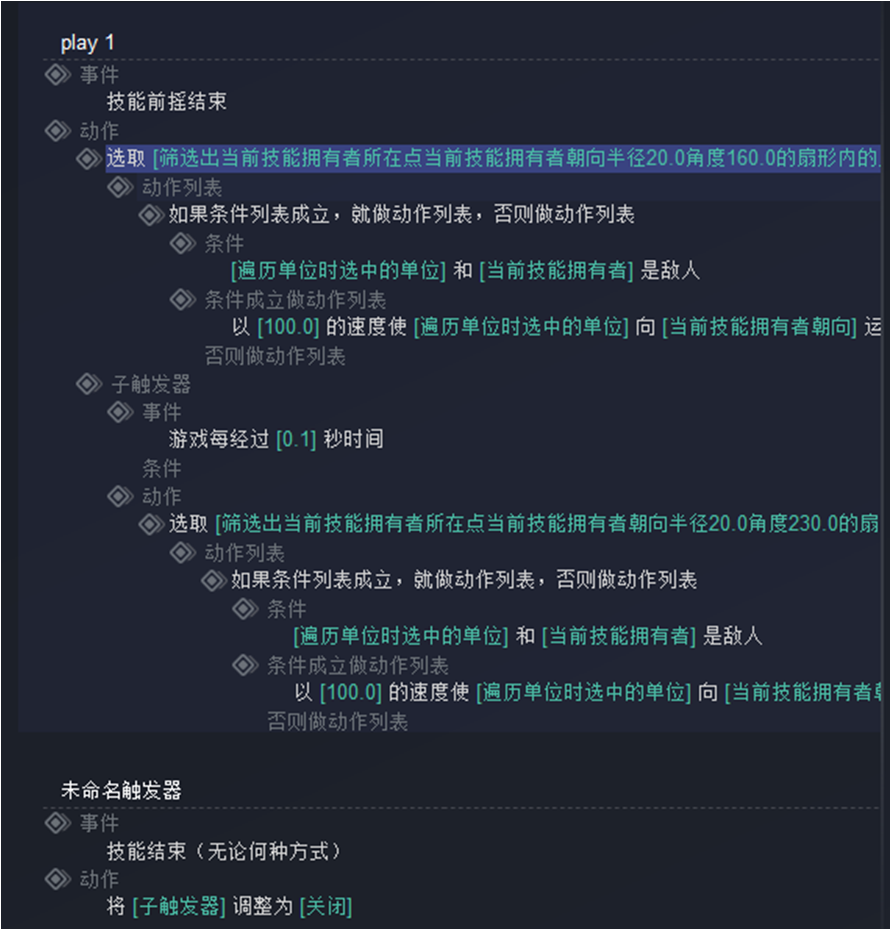

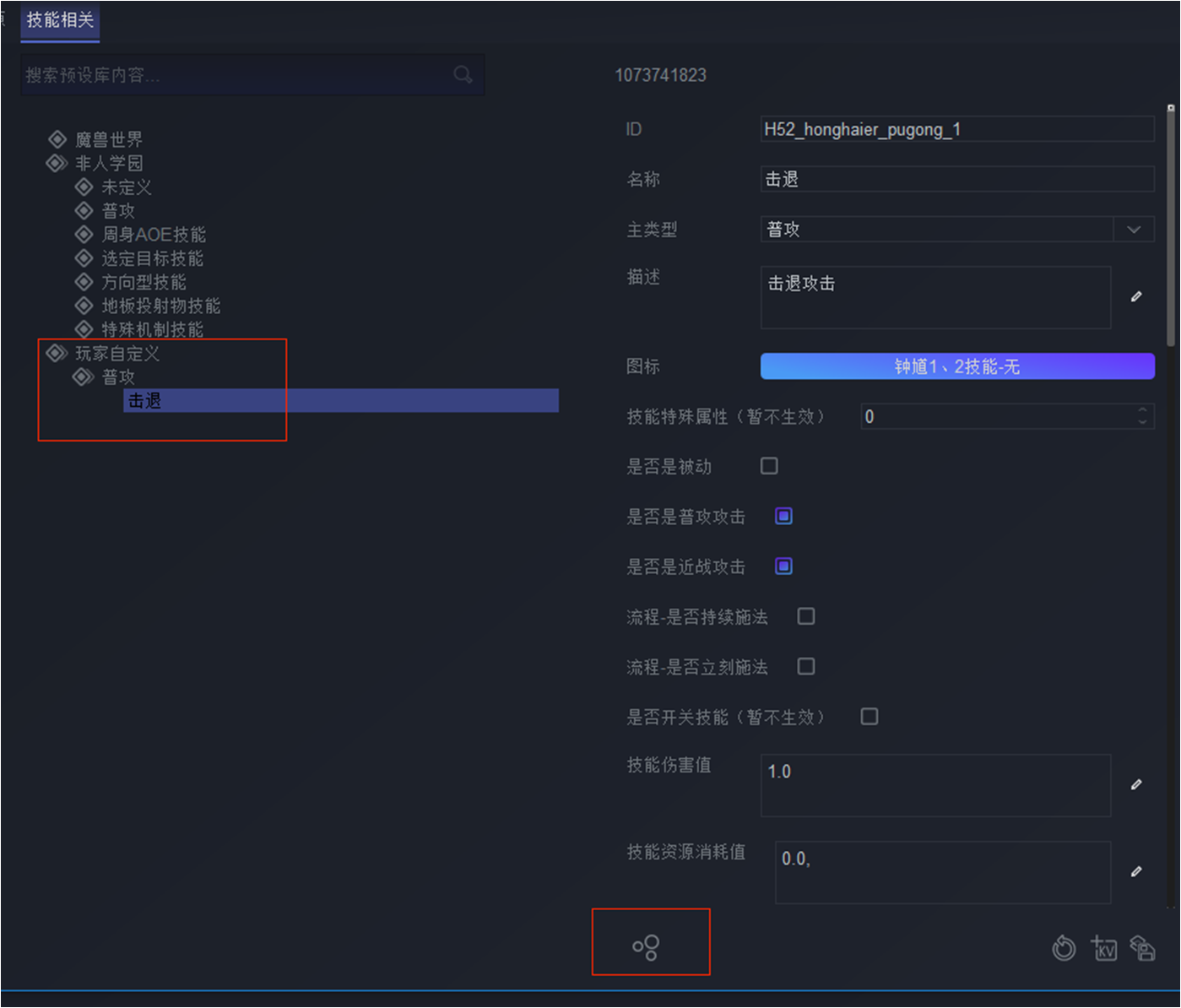

　　在自定义中找到该技能，点击技能高级编辑器，参数如下

　　复制以下参数

{     "action_type": {         "action_type": "PICK_UNIT_DO_ACTION",         "args_list": [             {                 "arg_type": 21,                 "args_list": [                     {                         "arg_type": 8,                         "args_list": [                             {                                 "arg_type": 2,                                 "args_list": [],                                 "sub_type": 16                             }                         ],                         "sub_type": "UNIT_ENTITY_POINT"                     },                     {                         "arg_type": 70,                         "args_list": [                             {                                 "arg_type": 2,                                 "args_list": [],                                 "sub_type": 16                             }                         ],                         "sub_type": "UNIT_FACE_DIR"                     },                     {                         "arg_type": 67,                         "args_list": [                             {                                 "arg_type": 1,                                 "args_list": [                                     20.0                                 ],                                 "sub_type": 1                             },                             {                                 "arg_type": 1,                                 "args_list": [                                     160.0                                 ],                                 "sub_type": 1                             }                         ],                         "sub_type": "CONST_SECTOR_SHAPE"                     }                 ],                 "sub_type": "UNIT_LIST_IN_SHAPE"             },             {                 "arg_type": 17,                 "args_list": [                     {                         "action_type": 100000,                         "args_list": [                             {                                 "arg_type": 16,                                 "args_list": [                                     {                                         "args_list": [                                             {                                                 "arg_type": 2,                                                 "args_list": [],                                                 "sub_type": 17                                             },                                             {                                                 "arg_type": 2,                                                 "args_list": [],                                                 "sub_type": 16                                             }                                         ],                                         "condition_type": "IS_ENEMY"                                     }                                 ],                                 "sub_type": 1                             },                             {                                 "arg_type": 17,                                 "args_list": [                                     {                                         "action_type": "UNIT_DIRECTION_STRAIGHT_MOVEMENT",                                         "args_list": [                                             {                                                 "arg_type": 1,                                                 "args_list": [                                                     100.0                                                 ],                                                 "sub_type": 1                                             },                                             {                                                 "arg_type": 2,                                                 "args_list": [],                                                 "sub_type": 17                                             },                                             {                                                 "arg_type": 70,                                                 "args_list": [                                                     {                                                         "arg_type": 2,                                                         "args_list": [],                                                         "sub_type": 16                                                     }                                                 ],                                                 "sub_type": "UNIT_FACE_DIR"                                             },                                             {                                                 "arg_type": 1,                                                 "args_list": [                                                     35.0                                                 ],                                                 "sub_type": 1                                             },                                             {                                                 "arg_type": "MOVEMENT_OBSTACLE_PROCESS_TYPE",                                                 "args_list": [                                                     2                                                 ],                                                 "sub_type": 1                                             },                                             {                                                 "arg_type": 1,                                                 "args_list": [                                                     1.5                                                 ],                                                 "sub_type": 1                                             }                                         ]                                     }                                 ],                                 "sub_type": 1                             },                             {                                 "arg_type": 17,                                 "args_list": [],                                 "sub_type": 1                             }                         ]                     }                 ],                 "sub_type": 1             }         ]     },     "trigger_system_type": 3 }

　　可以直接在触发器中黏贴

　　

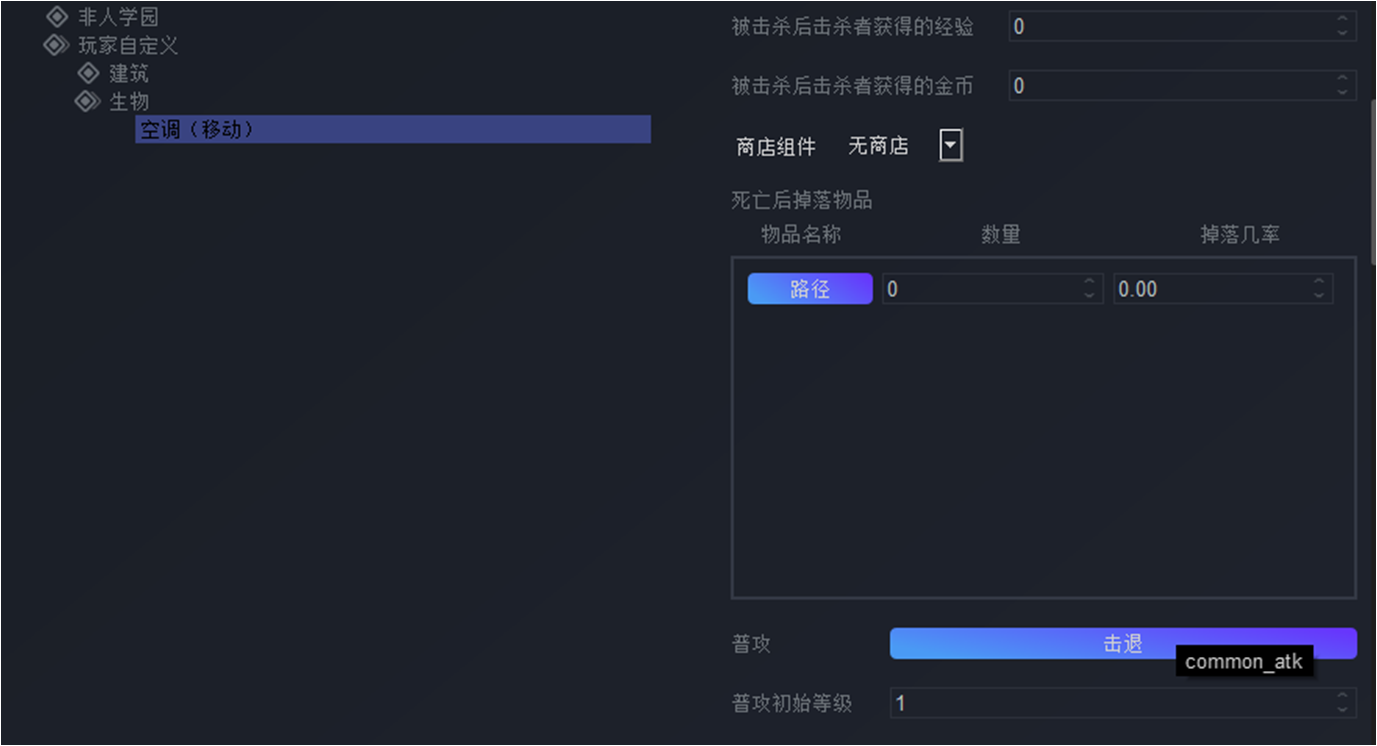

　　在预设单位中找到空调（移动）把普攻设置为刚刚的技能“击退”

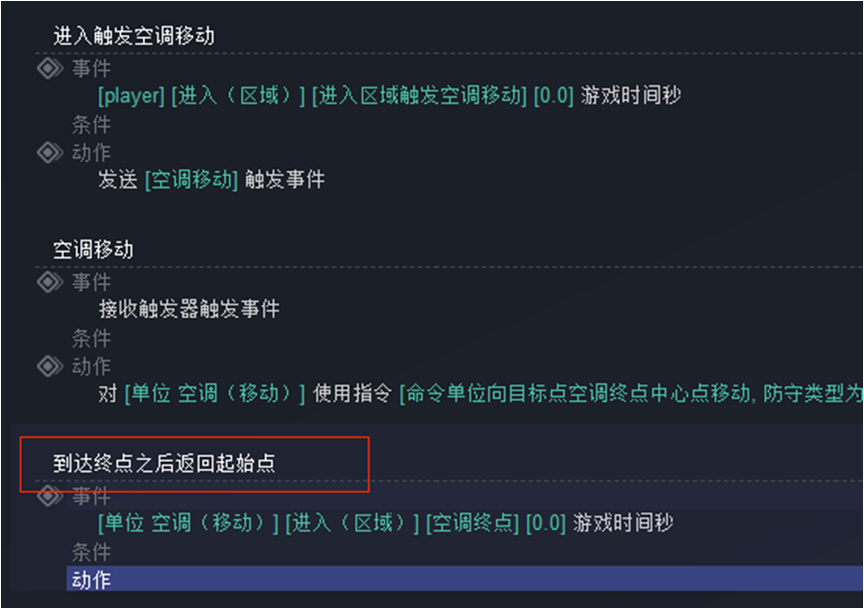

　　新建一个触发器，在事件中找到指定单位进入区域，参数如下

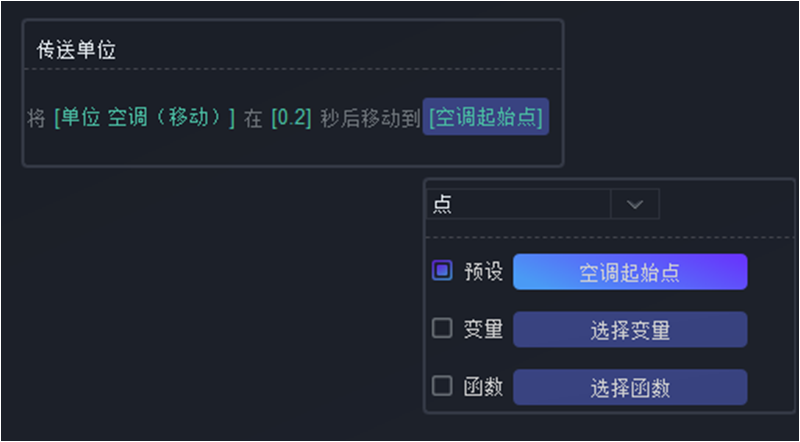

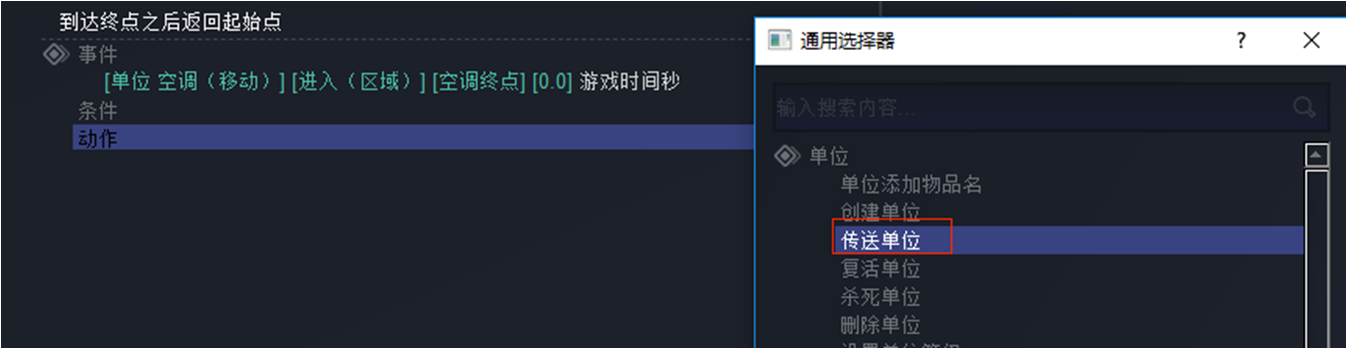

　　新建一个动作，传送单位。参数如下

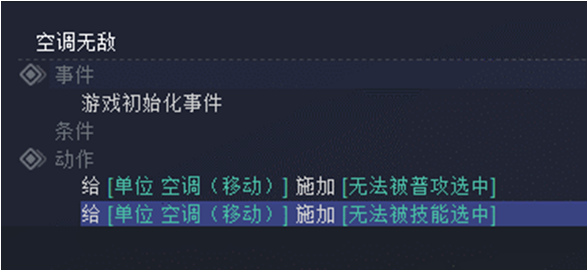

　　同样在设置该物体的阵营与附加无敌。

　　赶快点击左边的运行按钮，进行测试吧！
